H3O and h3o+ winch-on davit systems for heavier inflatable boats, Ribs, dinghies & PWC

These are the most functional and universal inflatable boat or PWC davit systems on the market! The H3O and H3O+ models holds up to 425 lbs and 725 lbs respectively. Either model comes with manual winch or optional electric winch system and optional extension mount).

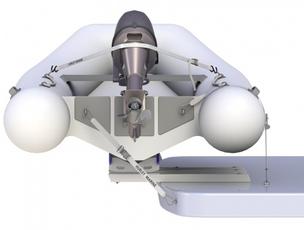

A hassle free davit system that lets you winch your dinghy onto your swim platform for easy storage. The rugged H3O and H3O+ dinghy davit system lets you winch your dinghy on for easy storage or just push-off for launching.


  • The H3O Dinghy Davit is ideal for dinghies up to 10’6″ (3.23m) long and up to 425 pound (193 kg) capacity.

  • The H3O+ Dinghy Davit is ideal for larger dinghies, RIBs, and PWC up to 725 pound (329 kg) capacity.

  • Impressive combination of design and function with superior quality & craftsmanship.

  • Universal linear bunk design to fit a multitude of hull designs:  RIBs, PWC (Sea-Doo Spark) and other craft.

  • The H3O and H3O+ Dinghy Davit Systems have an adjustable and removable winching system.

  • The stainless steel retrieval arm is adjustable from 3′ to 5′ for H3O and 6' nonadjustable for the H3O+, depending upon the length of your tender, and is easily removed for storage while underway.

  • Comes with an adjustable and removable manual winching arm system (from 3′ to 5’ long).

  • Optional electric winching arm system. See info and video below on the electric winch.

  • Ideal for high swim platforms and/or heavy tenders.

  • Optional extension mount also available for swim platforms with limited space.

  • Easily mounted on the swim platform and can be installed while the vessel is in the water in most cases.

  • Our revolutionary new stainless steel mounting system provides a quick release, leaving a very small footprint profile.

  • Made of Marine Grade High Density Polyethylene for strength and to reduce friction during retrieval and launching.

  • Overall weight:  H3O = 42 pounds (19 kg);  w/ electric winch 48 pounds (21.77 kg), H3O+ = 82 lbs with electric winch.

  • Watch a video here.



Purchase includes:

  • H30 or H3O+ dinghy davit system.
  • 4:1 ratio Winch with Retractable Arm and Mounts.
  • Mounting bolts are not included - as swim platform thicknesses are all different.
  • Two year warranty.
  • Shipping weight 42 pounds for H3O, 82 pounds for H3O+.
  • Optional electric winch if ordered.
  • Optional extension mounts if ordered.



The optional Hurley H3O Electric Winch has been specifically designed for the H3O and H3O+ davit systems and with your specific dinghy davit needs in mind. This winching system takes all the work out of dinghy tender retrieval. (watch this video).  The H3O Electric Winch Purchase Includes:

  • 12 Volt DC Electric Winch and Winch Line with Stainless Steel Carabiner
  • 3/4″ X 6′ Stainless Steel Winch Arm
  • Remote Control
  • Solenoid Box, Circuit Breaker and Wiring Harness
  • Whiplash Dampening Sleeve for Winch Rope
  • Instructions
  • Shipping Weight 16 pounds



Optional H3O and H3O+ (Plus) Davit Extension Mount

  • Made of reinforced fiberglass with stainless steel fasteners.
  • Extends H3O davit overboard on a swim platform by 13″, or the keel by 6.5”.
  • Extends H3O+ (Plus) davit overboard on a swim platform by 18″, or the keel by 9”.
  • 425 pound (193 kg) load limit for H3O.
  • 725 pound (329 kg) load limit for H3O+ (Plus).
  • Made of reinforced fiberglass with stainless steel fasteners.
  • Universal installation allowing the tender to point to either Starboard or Port of main vessel.
  • Purchase includes extension, davit mounting bolts, washers and nuts.


















The H3O or H3O+ must have a workable depth (transom to swim platform edge) of more than half of the beam of your dinghy or PWC, as well as other configurations of your vessel.  Give us a call or email to let us help you figure it all out!


H3O davit system - see more details or order here.


H3O+ davit system
- see more details or order here.
